1- Man-machine compatibility:
a- Control Panel: This machine adopts touch button design, the effective contact area of the button is large, the button is equipped with support points, prevent adhesion, long service life.
b- Information display module: This machine’s display has the characteristics of high brightness, high contrast, wide viewing Angle, etc., the operator can observe the display information from multiple angles and long distances.
2- Saline return infusion function: This machine can choose whether to carry out saline compensation according to user needs.
3- Intelligent return infusion function: This machine can automatically take the intelligent return infusion function according to the amount of plasma collection, improve work efficiency.
4- Cuff system: This machine has an intelligent cuff pressure control system that is easy to puncture. The system actively adjusts the cuff to the appropriate pressure when the operator piercings the blood donor, and actively restores to the set value after completion. Greatly improve the work efficiency.
5- Pipe installation guide diagram: This machine’s various interfaces and pipeline flow directions are clearly printed on the surface of the equipment, which greatly helps the operator to install correctly and quickly.
6- Acquisition program: This machine has two working modes: FFP and PPP. After the red blood cell detector detects red blood cells, the collection stops. The quality of plasma has individual differences, which can be configured during on-site installation and commissioning according to the actual requirements of users.
7- PPP mode (Platelet-free plasma): PPP mode is currently the common collection mode in China. The plasma collection quality is automatically set by the system according to the comparison and change of parameters of the photoelectric sensor and the blood sensor, which prevents the interference of bubbles, prevents the red blood cell from entering the plasma bag, and greatly improves the quality of the separated plasma.
8- FFP mode (Fresh Frozen plasma): FFP mode has high quality of plasma collection and can be used in clinical plasma. The plasma collection quality is set by the operator within a certain range. The smaller the set value, the higher the plasma collection quality.
9- Wireless transmission function: This machine background control system can monitor the running status of each device in real time through wireless communication. After collection, the collected information can be transmitted to the background server.

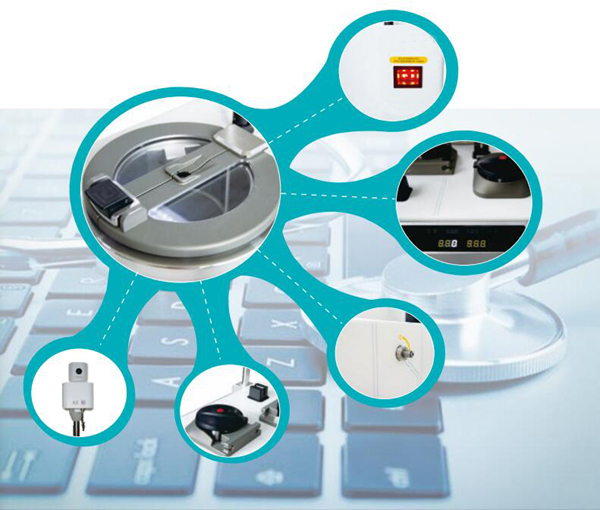

10- Characteristics of plasma collection machine:
a- Pot Optoelectronics Technology: This machine is equipped with the exclusive Pot Optoelectronics Technology in China, which can be preset program selection system, automatic calibration, using synthetic natural light, advance detection of plasma changes in the cup, early warning control of red blood cells, and fully guarantee the quality of plasma collection.
b- Camera: This machine has a main and secondary camera, the main camera is used for face recognition and identity verification, and the secondary camera works with the main camera to ensure the consistency of the donor's witness.
c- Scan window: This machine can scan ID card, barcode and fingerprint information, more efficient management system information.

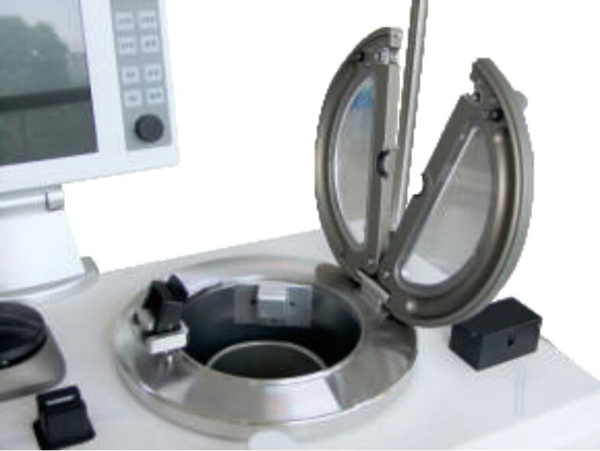

d- Blood pump/anti-pump, centrifugal tank cover: This machine exclusive use of stainless steel roller, integrated pump head assembly, to ensure accurate flow, maintenance-free.
e- This machine cover lock switch is designed to automatically spring open with one key, which is more convenient and labor-saving, and double protection is locked and closed.
f- This machine blood pump, anti-pump and centrifugal bin cover are military-grade technology, the surface is hard anodized, beautiful and durable.
g- DPM: This machine external design for all metal, the first in China, more easy to operate. This machine internal use of high performance pressure sensor, higher stability and accuracy.
h- Plasma scale: This machine adopts a unique external scale design of the sensor housing, and the multi-purpose weighing can be hung and clipped. The symmetric body rotation Angle is not sensitive to change, reducing the influence of equipment vibration symmetry parameters, and automatic calibration every time you start.
i- Anticoagulant scale (AC scale): This machine anticoagulant scale can monitor the flow of anticoagulants to ensure the accuracy of the flow of anticoagulants, and the amount of anticoagulants used is visually displayed in the system.
j- Pin cap holder: This machine integrated pin cap holder, meet all pin cap recycling.
k- Handle: This machine handle with LED display function, real-time display of the collection of blood flow status, blood donors can intuitively understand the collection information.
l- Pump drive system: This machine adopts imported pump motor combined with DC servo technology, which has the characteristics of gentle start without step, stable speed, minimal noise and low temperature opening. This machine pump speed is increased to step speed to avoid the mutation of blood flow speed, which greatly protects the blood vessels of blood donors.
m- Centrifugal drive system: This machine centrifugal motor improves the insulation and temperature resistance of wire and cable; The process of ceramic chips is changed from bonding to burning, with low noise, long service life and centrifugal speed deviation of ±10 revolutions. This machine’s centrifugal bowl uses military-grade products, the surface is hard anodized, beautiful and durable.
n- Line sensor: This machine adopts intelligent line sensor, red blood cell, bubble recognition technology, line sensor circuit using programmable device design, can effectively identify and analyze the red blood cells, plasma and bubbles in the pipeline.
o- Leak detector: This machine’s wide range monitoring liquid leakage design, leakage sensor monitoring range, high sensitivity, can be 50μL liquid monitoring.
p- Air detector: This machine’s air detector improves the blood transfusion safety level and meets the CE/ FDA blood transfusion requirements. It can accurately judge 15μL bubbles, which greatly improves the safety performance and improves the safety of blood donors.
q- Alarm indicator: This machine establishes a comprehensive fault information alarm system platform, conducts comprehensive continuous sampling and monitoring of various conditions of the equipment, establishes a special alarm system and meets the national YY0709-2009 standard.
r- Red cell control technique: This machine adopts photoelectric sensor and blood sensor double threshold to monitor red blood cell flow, comprehensively and effectively improve the level of red blood cell monitoring and improve the quality of plasma collection.
s- Blood donor pressure monitoring: This machine’s intelligent pressure monitoring system, when the blood donor pressure changes, the system automatically adjusts the pump speed to adapt to the blood donor pressure, when the blood donor pressure abnormal system alarm, greatly protect the safety of the blood donor.
t- Fault diagnosis system: This machine comprehensive fault diagnosis, fault information text prompt, more intuitive.
11- Data interface and data transmission:
a- The data interface has USB interface and RJ45 interface, which is only used for speed regulation and setting of G068-1, and the data information of the device is transmitted to the background control system computer through wireless WIFI.
b- RJ11 interface, 3.5mm interface, and flat slot interface are reserved interface and are not used.

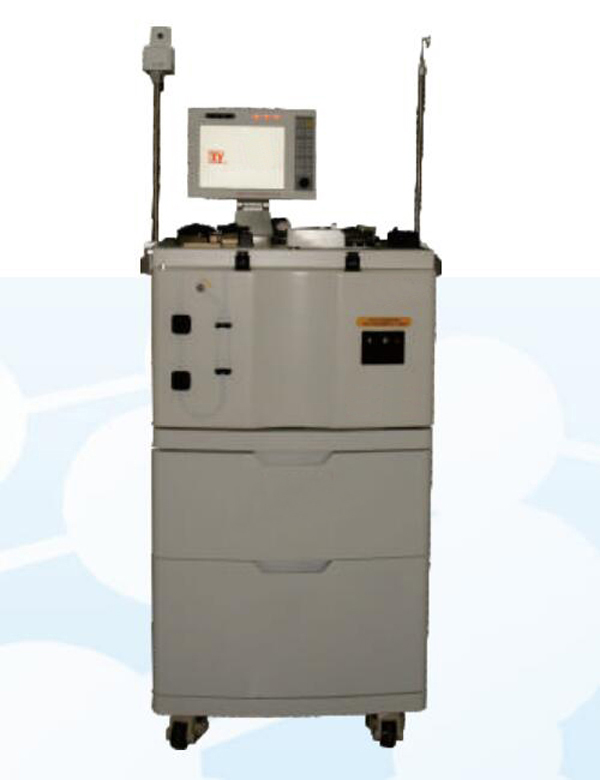

12- Specifications: This machine is a lightweight and flexible blood treatment system with the following specifications:
a. Overall dimension: 580*410mm*760mm±10mm
Package dimension: 730*560mm*580mm±10mm
b. Weight: Equipment net weight 28kg
Total weight with package 40kg
c. Power requirements:
Voltage: (AC) 220V~
Frequency: 50Hz
Power: 250VA
d. Fuse tube: Specification Model 021506.3MXP
Parameter Requirement: T6.3A H 250V
e. Working environment:
Atmospheric pressure: 86kPa~106kPa（645mmHg-795mmHg）
Operating temperature: +10℃ ~ +30℃
Relative humidity: ≦70%
|
|
